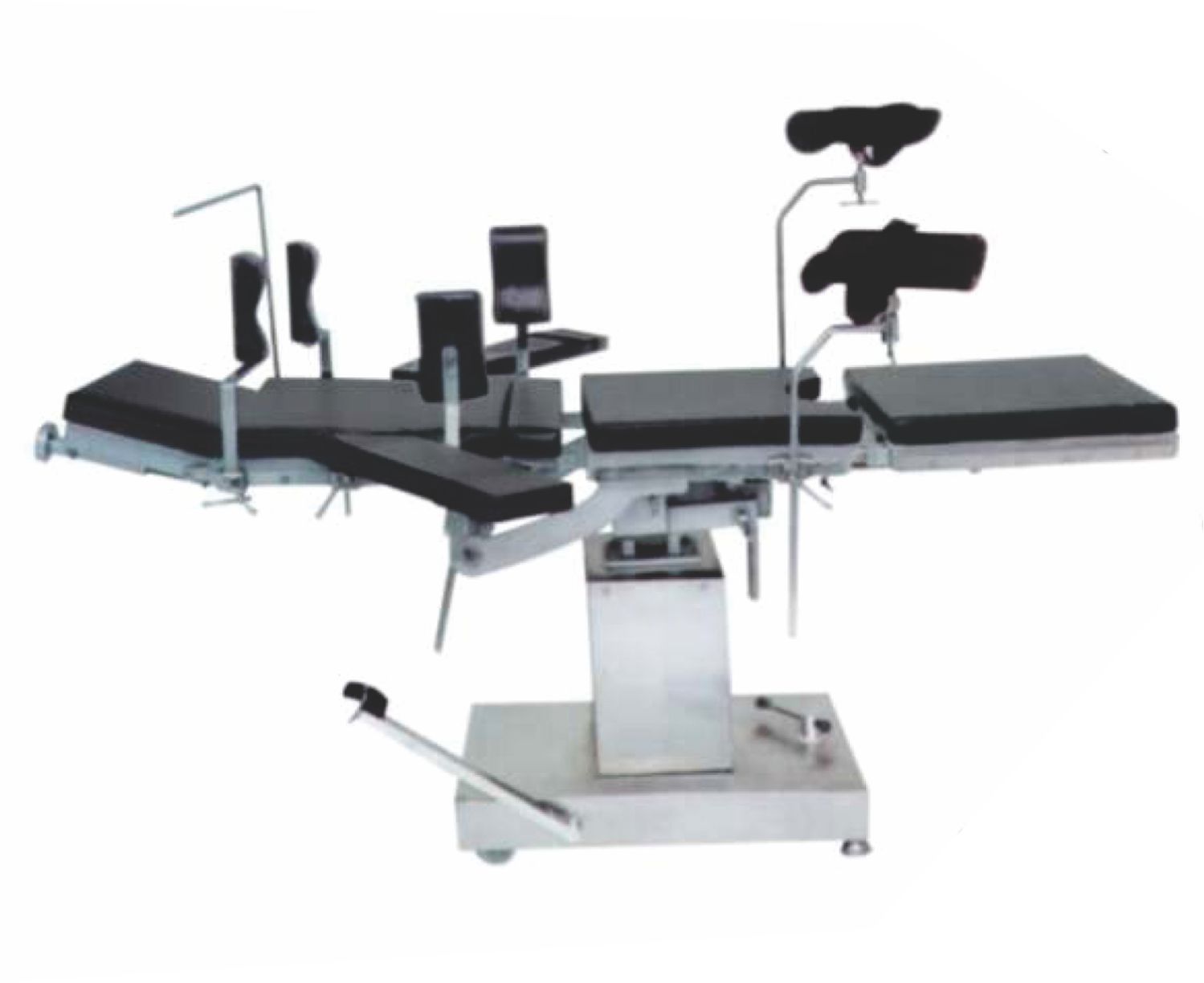

Universal Hydraulic Operating Table

Universal hydraulic operating table is specially designed to provide complete flexibility for patient positioning required for modern surgeries. This table is constructed of stainless steel and other high quality materials.

FEATURES :-

? Five sectional stainless steel top which gives ease various surgical positions.
? UP & DOWN by Hydraulic System.
? Standard Positioning : Height UP / Down, Trendelenberg / Reverse Trendelenberg, Lateral tilt sides, Flex / Reflex, Chair, Kidney elevation through drive handle.
? Base and Column covered with S.S. Top to ensure high durability and Hygiene for the operation room.
? Mobile on Smooth running castors
? Floor Lock Facility.

Standard Accessories :-

? Five section matterss – 1 Set
? Anesthetist Screen – 1 Pc.
? Padded Shoulder support – 2 Pcs.
? Padded Lateral Support – 2 Pcs.
? Padded Lithotomy Crutches – 2 Pcs.
? Padded Arm Rest – 2 Pcs.
? Drive Handle- 1 Pc.

Specification/Model No. Approx. Dimension Approx. Dimension
Overall Length of the table 1950 mm. 1950 mm.
Overall width of the table 500 mm. 500 mm.
Minimum height of the table 780 mm. 780 mm.
Maximum height of the table 1030 mm. 1030 mm.
Trendlengburg / Reverse 30 Degree 30 Degree
Flex / Reflex 800 / 2200 800 / 2200
Side Tilt 220 220
Kidney Position 125mm manually 125mm manually
Leg Section 900 900
Hi – Low Lift Hydraullic Electric
